We designed this standard laminate test cell for R&D purposes. This laminate test cell is a single cell. A separator is sandwiched between anode and cathode with a small quantity of electrolyte. Both anode and cathode are attached with tabs as current collectors. Two sheets of laminate film are used for sealing the cell.

Specifications:

• Dimension: 65 x 65 x 1 mm)
• Nominal Capacity: 150 mAh
• Nominal voltage: 3.5 V
• Anode: graphite
• Cathode: LiFePO4
• Operation temperature: -20°C to +60°C

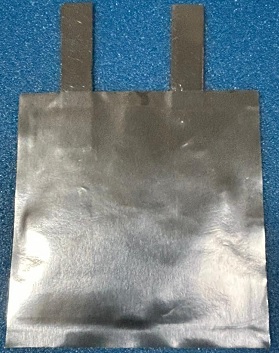

The image of our designed laminate test cell
