This multiple Cells stack is a Proton Exchange Membrane (PEM) Fuel Cell stack suitable for many small projects and uses. The cooling system of this stack is air. It is attached with a powerful mini fan 2,000 RPM.

This stack is a closed cathode, with higher current density, operational capability in a wider ambient temperature range and longer lifetime.

Specifications:

• Power Output: 0.6 kW
• Electrode Area: 25 cm²
• Generated Voltage: 12.0 V DC
• Dimensions (H x W x D): (120 x 100 x 100 mm)
• Weight: 2.0 kg

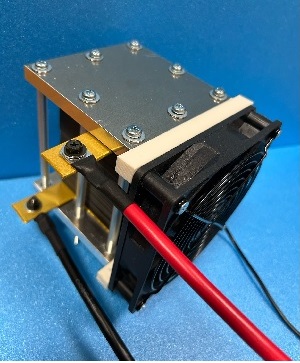

Image below of our designed Air-cooling FC stack
